Description

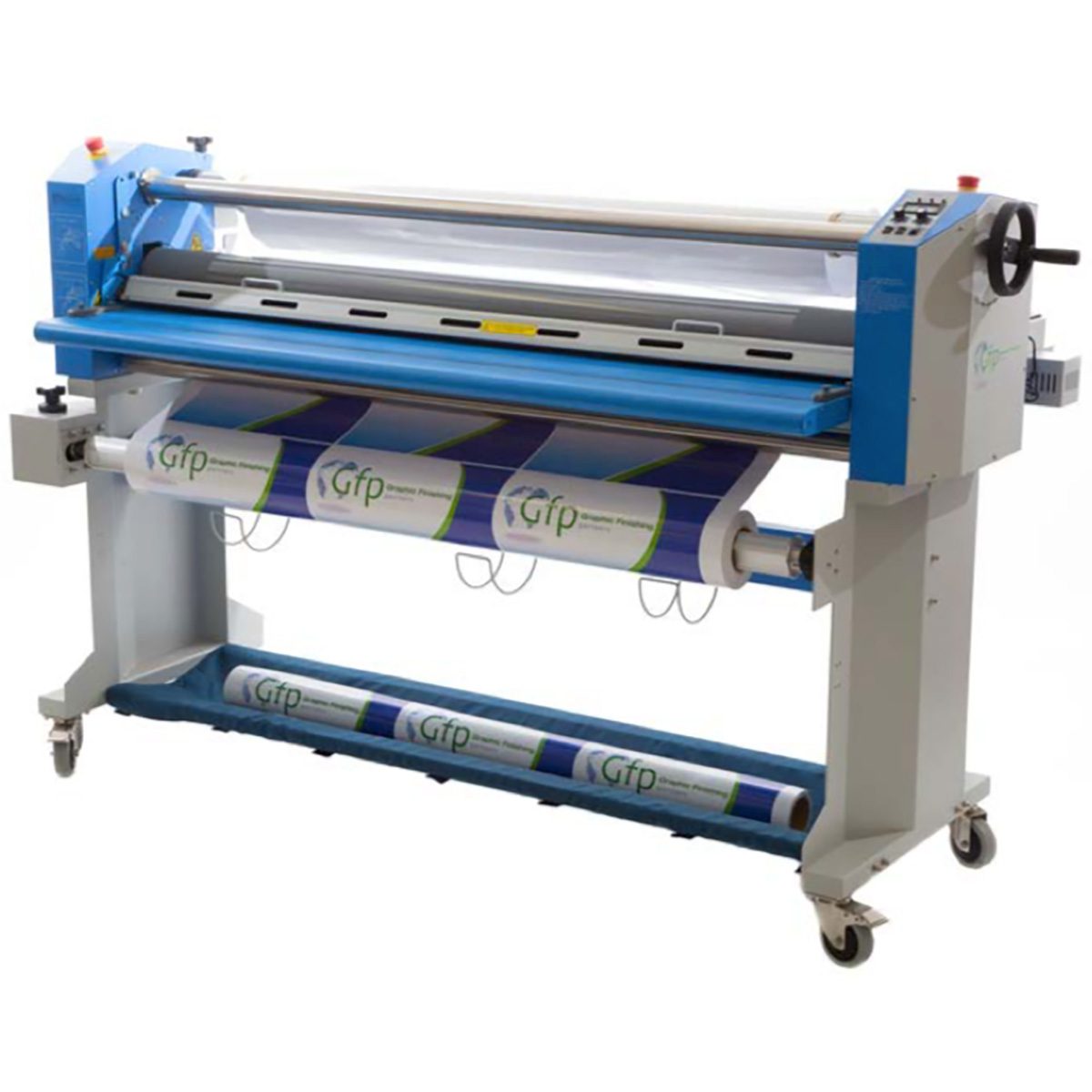

Gfp 563TH-4RS Production Top-Heat Laminator, 63" is a 63" production top-heat roll laminator from Graphic Finishing Partners (Gfp) of Maryland Heights, Missouri. It is built for signs and banners, POP displays, trade show graphics, photo and graphic mounting, dry-erase boards, floor and window graphics, and vehicle graphics.
Key features
- Swing-out Quick Grip supply shafts and drop-in Quick Grip rewind shafts
- Rear rewind with inline rotary slitters (included)
- Swing-up feed table with 38” input height
- Metal alloy heater for durability
- 4.5” diameter rollers with roller gap measurement scale
- Photoelectric eye for operator safety
- Media alignment disks keep supply rolls from telescoping
- Two-year parts and labor warranty from Gfp
Included: stand with casters, foot pedal, rear rewind with rotary slitters, and swing-out Quick Grip supply shafts.
Gfp 563TH-4RS Production Top-Heat Laminator, 63" specifications
| Gfp model | 563TH-4RS |
|---|---|
| Laminating Width | 63” |
| Roller Diameter | 4.5” |
| Maximum Speed (ft/min) | 20 ft/min |
| Main Roller | Silicone |
| Maximum Roller Gap | 1” |
| Roller Gap Adjustment | Hand Wheel |
| Unwinds | Top/bottom |
| Liner Rewind | Chain Drive |
| Supply Shafts | Two Swing-Out 3” Quick Grip |
| Tension Adjustment | Single Knob |
| Maximum Supply Roll Diameter | 8” Top/16” Bottom |
| Swing-Out Shaft Maximum Weight | 115 lbs |
| Maximum Temperature | 140ºF |
| Heating Element | Metal Alloy Heater |
| Power Requirements | 110V 12A |
| Power Consumption | 1320W |
| Rear Rewind With Slitters | Included |
| Foot Pedal | Included |
| Stand With Casters | Included |
| Machine Dimensions (L x W x H) | 87”x 26.5”x 52.5” |
| Net Weight With Stand | 491 lbs |
| Shipping Dimensions (L x W x H) | 90”x 33”x 46” (828 lbs) |
Spec sheet
Download the official Gfp 563TH-4RS spec sheet (PDF). Shipping dimensions and weight from Gfp: 90” x 33” x 46”, 828 lb.
Gfp 563TH-4RS videos
More official Gfp videos:
- Gfp 563TH-4RS Applications – Roll to Roll Lamination
- 563TH-4RS Slitter Assembly
- Gfp YouTube channel (all laminator tutorials and applications)
Source: Gfp 563TH-4RS product page and Gfp data sheet (REV 02/2026).
Need help choosing a laminator, films or installation? Call a DTG finishing specialist at 800.681.0024 or email info@dtgweb.com.
Gfp 563TH-4RS Production Top-Heat Laminator, 63" FAQ
What is the maximum laminating width of the Gfp 563TH-4RS?
63", per the Gfp data sheet.
Does the Gfp 563TH-4RS use heat?
It has top heat only. The metal alloy heater reaches a maximum of 140ºF for top-heat finishing. For thermal (heat-activated) films, the Gfp dual-heat model is the 865DH-4RS.
What power does the Gfp 563TH-4RS need?
110V, 12A (1320W), per Gfp.
How fast does the Gfp 563TH-4RS run?
Up to 20 ft/min, per the Gfp data sheet.
What is included with the Gfp 563TH-4RS?
Stand with casters, foot pedal, rear rewind with rotary slitters, and swing-out Quick Grip supply shafts. Gfp covers the laminator with a two-year parts and labor warranty.
Where can I buy the Gfp 563TH-4RS?
From DTG (Digital Technology Group) in Tampa, Florida. Call 800.681.0024 for freight, installation and training.
