Description

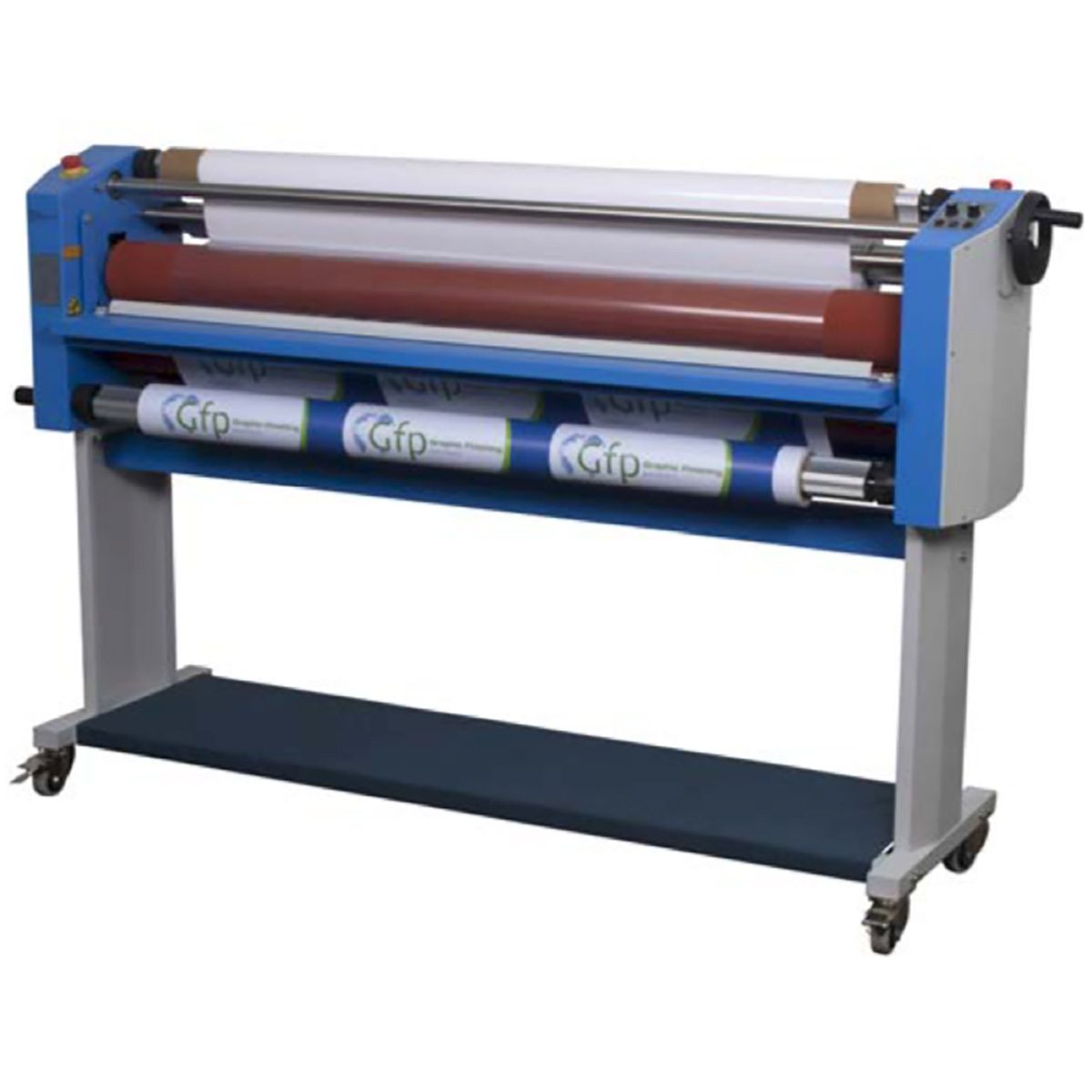

Gfp 355TH 300 Series Top-Heat Laminator, 55" is a 55" professional top-heat roll laminator from Graphic Finishing Partners (Gfp) of Maryland Heights, Missouri. It is built for signs and banners, POP displays, trade show graphics, photo and graphic mounting, dry-erase boards, floor and window graphics, and vehicle graphics.
Key features
- Top heat for better overlaminate results
- Integrated rear rewind for roll-to-roll capability
- Quick Grip film shafts for fast loading
- 5” diameter rollers for smooth finishing
- Swing-up feed table with 38” input height
- Photoelectric safety eye and durable metal alloy heater
- Two-year parts and labor warranty from Gfp
Included: stand with casters, foot pedal and integrated rear rewind.
Gfp 355TH 300 Series Top-Heat Laminator, 55" specifications
| Gfp model | 355TH |
|---|---|
| Laminating Width | 55” |
| Roller Diameter | 5” |
| Maximum Speed (ft/min) | 20 ft/min |
| Main Roller | Rubber |
| Maximum Roller Gap | 1” |
| Roller Gap Adjustment | Hand Wheel |
| Unwinds | Top/Bottom |
| Liner Rewind | Chain Link |
| Supply Shafts | 3” Quick Grip |
| Tension Adjustment | Single Knob |
| Maximum Supply Roll Diameter | 6” OD |
| Maximum Temperature | 140ºF |
| Heating Element | Metal Alloy Heater |
| Power Requirements | 120V 11A |
| Power Consumption | 1300W |
| Rear Rewind | Integrated |
| Foot Pedal | Included |
| Stand With Casters | Included |
| Machine Dimensions (L x W x H) | 72” x 23” x 48” |
| Net Weight With Stand | 350 lbs |
| Shipping Dimensions (L x W x H) | 79” x 26” x 30” (472 lbs) |
Spec sheet
Download the official Gfp 300 Series spec sheet (PDF). Shipping dimensions and weight from Gfp: 79” x 26” x 30”, 472 lb.
Gfp 355TH videos
More official Gfp videos:
- Gfp 300 Series Applications – Roll To Roll Lamination
- Gfp 300 Series – Installation & Assembly
- Gfp YouTube channel (all laminator tutorials and applications)
Source: Gfp 355TH product page and Gfp data sheet (REV 02/2026).
Need help choosing a laminator, films or installation? Call a DTG finishing specialist at 800.681.0024 or email info@dtgweb.com.
Gfp 355TH 300 Series Top-Heat Laminator, 55" FAQ
What is the maximum laminating width of the Gfp 355TH?
55", per the Gfp data sheet.
Does the Gfp 355TH use heat?
It has top heat only. The metal alloy heater reaches a maximum of 140ºF for better laminate results. For thermal (heat-activated) films, the Gfp dual-heat model is the 865DH-4RS.
What power does the Gfp 355TH need?
120V, 11A (1300W), per Gfp.
How fast does the Gfp 355TH run?
Up to 20 ft/min, per the Gfp data sheet.
What is included with the Gfp 355TH?
Stand with casters, foot pedal and integrated rear rewind. Gfp covers the laminator with a two-year parts and labor warranty.
Where can I buy the Gfp 355TH?
From DTG (Digital Technology Group) in Tampa, Florida. Call 800.681.0024 for freight, installation and training.
