Description

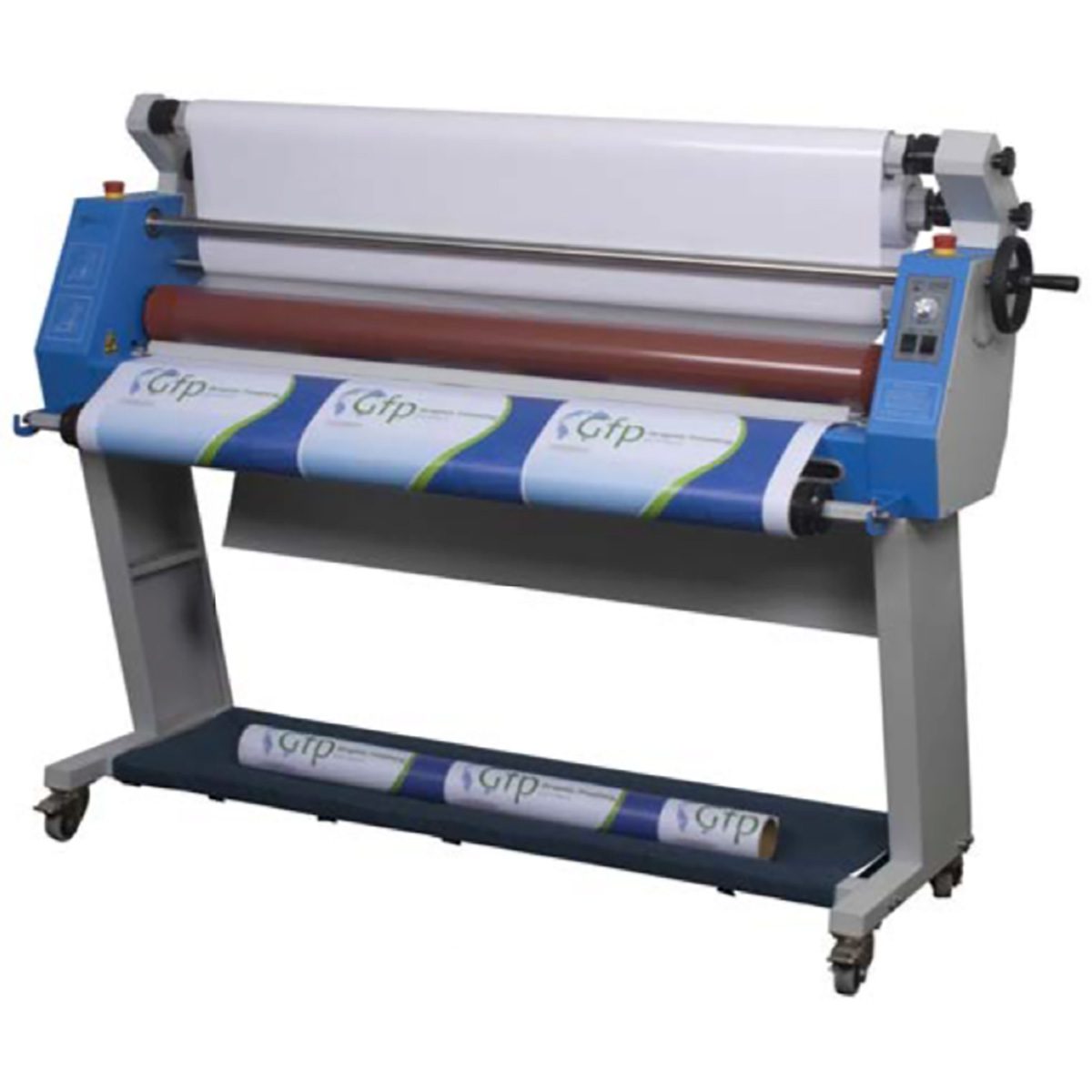

Gfp 255C 200 Series Cold Laminator, 55" is a 55" entry-level cold (pressure-sensitive) roll laminator from Graphic Finishing Partners (Gfp) of Maryland Heights, Missouri. It is built for signs and posters, trade show and POP displays, single-sided lamination, graphic and photo mounting, floor graphics, vinyl weeding and colored vinyl.
Key features
- Quick Grip aluminum film shafts for easy loading
- Variable roller gap up to 1”
- Single hand-wheel pressure adjustment
- 4.5” diameter rollers and chain-drive rewind
- 38” output height
- Media alignment disks keep supply rolls from telescoping
- Two-year parts and labor warranty from Gfp
Included: stand with casters and foot pedal.
Gfp 255C 200 Series Cold Laminator, 55" specifications
| Gfp model | 255C |
|---|---|
| Laminating Width | 55” |
| Roller Diameter | 4.5” |
| Maximum Speed (ft/min) | 13 ft/min |
| Main Rollers | Rubber |
| Maximum Roller Gap | 1” |
| Gap Adjustment | Hand Wheel |
| Unwinds | Top/Bottom |
| Liner Rewind | Chain Drive |
| Supply Shaft | 3” Quick Grip |
| Tension Adjustment | Single Knob |
| Maximum Supply Roll Diameter | 8” OD |
| Power Requirements | 110V 0.5A |
| Power Consumption | 38W |
| Foot Pedal | Included |
| Stand With Casters | Included |
| Net Weight With Casters | 311 lbs |
| Machine Dimensions (L x W x H) | 73”x 24”x 55” |
| Shipping Dimensions (L x W x H) | 78” x 26” x 28” (430 lbs) |
Spec sheet
Download the official Gfp 200 Series spec sheet (PDF). Shipping dimensions and weight from Gfp: 78” x 26” x 27–28”, 430 lb.
Gfp 255C videos
More official Gfp videos:
- 200 Series Features Video 2025
- GFP 255C & 263C Installation & Assembly
- Gfp YouTube channel (all laminator tutorials and applications)
Source: Gfp 255C product page and Gfp data sheet (REV 02/2026).
Need help choosing a laminator, films or installation? Call a DTG finishing specialist at 800.681.0024 or email info@dtgweb.com.
Gfp 255C 200 Series Cold Laminator, 55" FAQ
What is the maximum laminating width of the Gfp 255C?
55", per the Gfp data sheet.
Does the Gfp 255C use heat?
No. The 255C is a cold laminator for pressure-sensitive films, mounting adhesives and pre-masking. For heat, look at the Gfp 300 Series, 563TH-4RS or 663TH (top heat) or the 865DH-4RS (thermal films).
What power does the Gfp 255C need?
110V, 0.5A (38W), per Gfp.
How fast does the Gfp 255C run?
Up to 13 ft/min, per the Gfp data sheet.
What is included with the Gfp 255C?
Stand with casters and foot pedal. Gfp covers the laminator with a two-year parts and labor warranty.
Where can I buy the Gfp 255C?
From DTG (Digital Technology Group) in Tampa, Florida. Call 800.681.0024 for freight, installation and training.
