Description

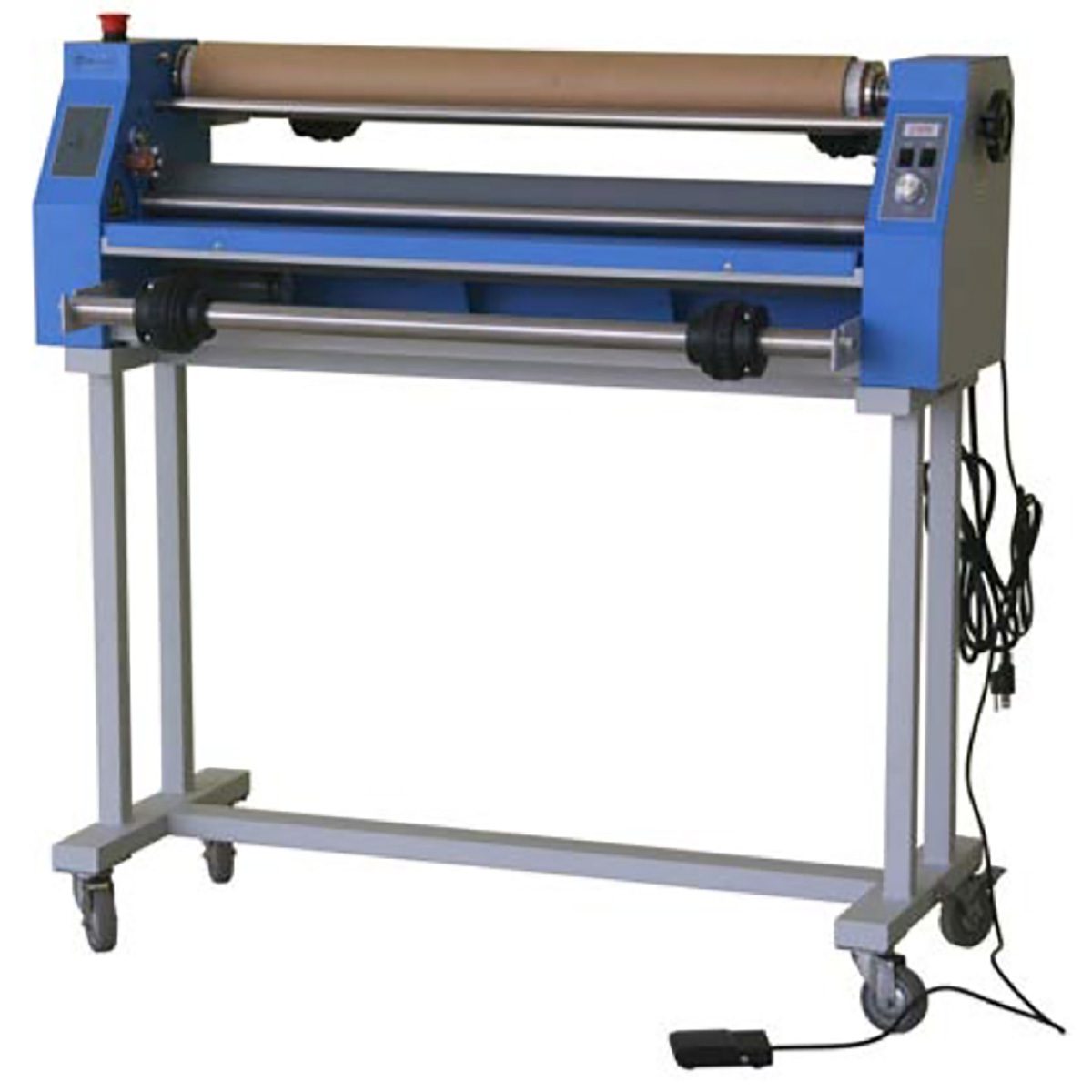

Gfp 230C Compact Cold Laminator, 30" is a 30" compact cold (pressure-sensitive) laminator from Graphic Finishing Partners (Gfp) of Maryland Heights, Missouri. It is built for banners and posters, POP displays, photographs, architectural drawings, maps, presentations, and vinyl lettering pre-mask.
Key features
- Needs only about 5 sq. ft. of floor space, and rolls away on its stand
- Quick and easy setup with infinite hand-wheel adjustment
- 2.5” silicone rollers suited to latex and solvent ink finishing
- Forward/reverse, run or foot-pedal operation and variable speed
- Foot pedal and stand included
- Two-year parts and labor warranty from Gfp
Included: stand with casters and foot pedal.
Gfp 230C Compact Cold Laminator, 30" specifications
| Gfp model | 230C |
|---|---|
| Laminating Width | 30” |
| Roller Diameter | 2.5” |
| Maximum Speed (ft/min) | 11.5 ft/min |
| Main Rollers | Silicone |
| Maximum Roller Gap | 1/2” |
| Roller Gap adjustment | Hand Wheel |
| Unwinds | Top/Bottom |
| Liner Rewind | Direct Drive |
| Supply Shaft | 3” Quick Grip Shaft |
| Tension Adjustment | Single Knob |
| Maximum Supply Roll Diameter | 6” OD |
| Power Requirements | 110V 0.4A |
| Power Consumption | 38W |
| Foot Pedal | Included |
| Stand With Casters | Included |
| Net Weight With Stand | 117 lbs |
| Machine Dimensions (L x W x H) | 43”x 22”x 42” |
| Shipping Dimensions (L x W x H) | 48”x 21” x 22” (182 lbs) |
Spec sheet
Download the official Gfp 230C spec sheet (PDF). Shipping dimensions and weight from Gfp: 48–51” x 21” x 22”, 182–185 lb (varies by Gfp document).
Gfp 230C videos
More official Gfp videos:
- 230C Installation & Assembly Video
- Gfp 220C/230C Applications – Mounting To A Substrate
- Gfp YouTube channel (all laminator tutorials and applications)
Source: Gfp 230C product page and Gfp data sheet (REV 02/2026).
Need help choosing a laminator, films or installation? Call a DTG finishing specialist at 800.681.0024 or email info@dtgweb.com.
Gfp 230C Compact Cold Laminator, 30" FAQ
What is the maximum laminating width of the Gfp 230C?
30", per the Gfp data sheet.
Does the Gfp 230C use heat?
No. The 230C is a cold laminator for pressure-sensitive films, mounting and pre-mask taping.
What power does the Gfp 230C need?
110V, 0.4A (38W), per Gfp.
How fast does the Gfp 230C run?
Up to 11.5 ft/min, per the Gfp data sheet.
What is included with the Gfp 230C?
Stand with casters and foot pedal. Gfp covers the laminator with a two-year parts and labor warranty.
Where can I buy the Gfp 230C?
From DTG (Digital Technology Group) in Tampa, Florida. Call 800.681.0024 for freight, installation and training.
