Description

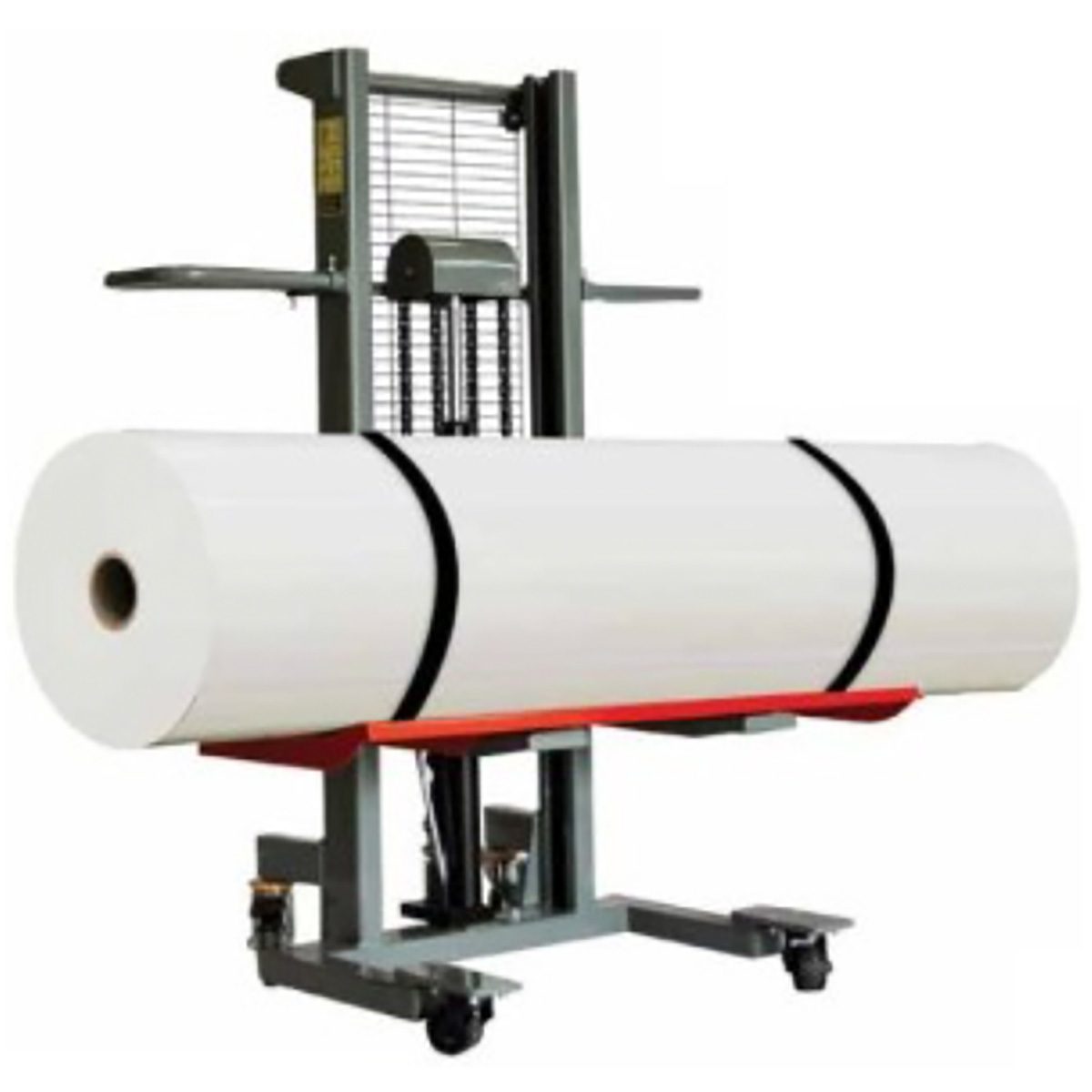

Foster On-A-Roll Lifter Jumbo is a genuine Foster product (Foster item #61577). One operator can easily lift rolls as heavy as 990 lbs (450 kg), as wide as 16 feet 5 inches (5 m), and with diameters as great as 19.6 inches (50 cm). Designed for EFI, Reggiani and Matan printers, the Foster On-a-Roll® Lifter Jumbo is perfect for businesses operating grande- or extra-wide printers, fabric printers, or those handling floor coverings and similar materials.
Foster On-A-Roll Lifter Jumbo specifications
| Foster item # | 61577 |
|---|---|
| Product | On-A-Roll Lifter Jumbo |
| Roll Weight Capacity | 990 lbs (450 kg) |
| Lift Height | 52" H (132 cm) |
| Max. Roll Width | 16' 5" (500 cm) |
| Max. Roll Diameter | 19.6" (50 cm) |
| Overall Dimensions (W x D x H) | 47.24"W x 30.51"D x 61.22"H (120 x 77.48 x 155.5 cm) |
| Media Lifter Weight | 295 lbs (134 kg) |
| Bottom Fork Clearance | 4.33" (11 cm) |
Source: Foster product page (go-foster.com).
Need help choosing media for your printer? Call a DTG print specialist at 800.681.0024 or email info@dtgweb.com.
Foster On-A-Roll Lifter Jumbo FAQ
What is the Foster item number?
61577, per Foster (go-foster.com).
How much weight can it lift and how high?
990 lbs (450 kg) roll capacity; lift height 52" H (132 cm) (Foster).
What roll size does it handle?
Max. roll width 16' 5" (500 cm), max. roll diameter 19.6" (50 cm) (Foster).
Where can I buy it?
From DTG in Tampa, Florida; call 800.681.0024 for freight and lead time.
