Description

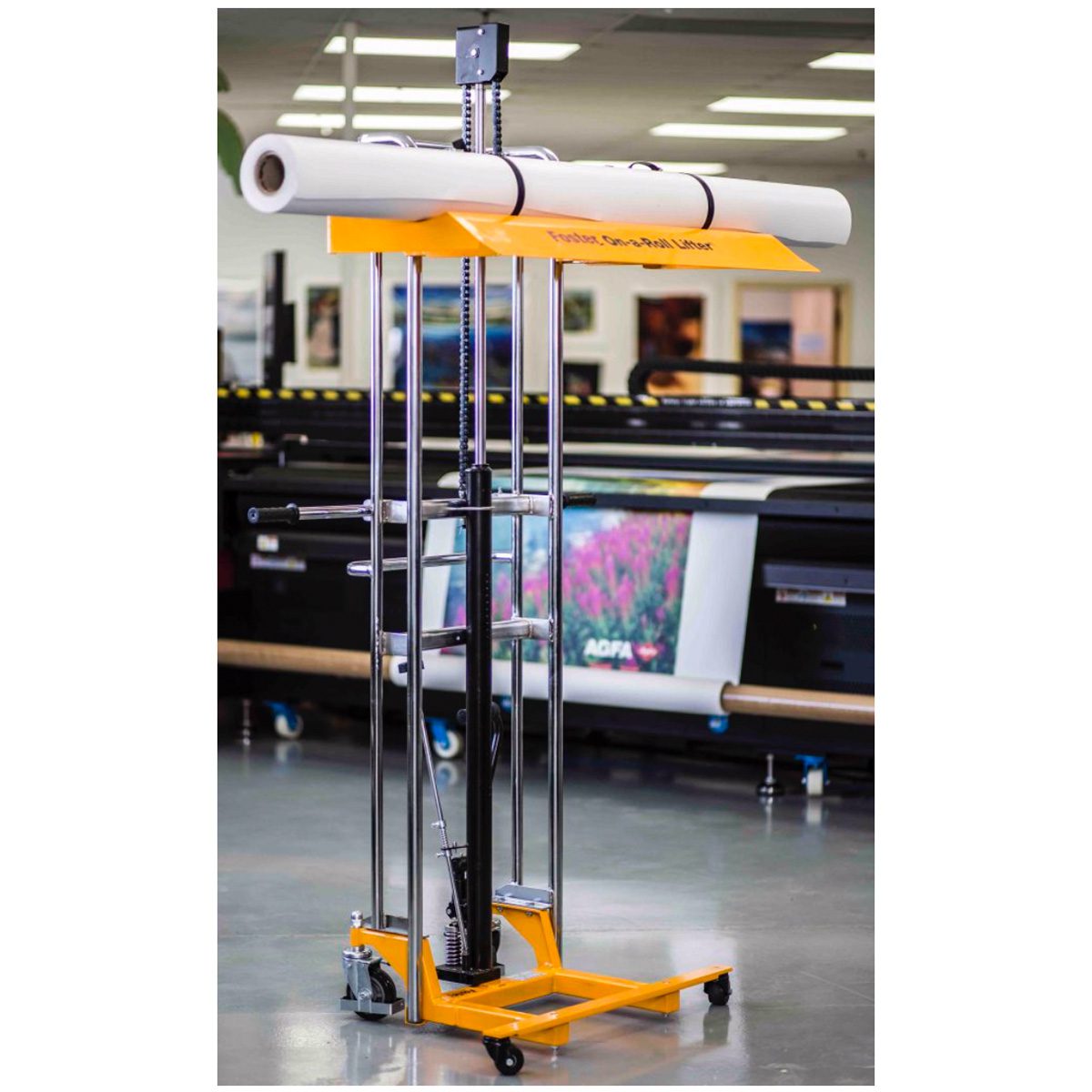

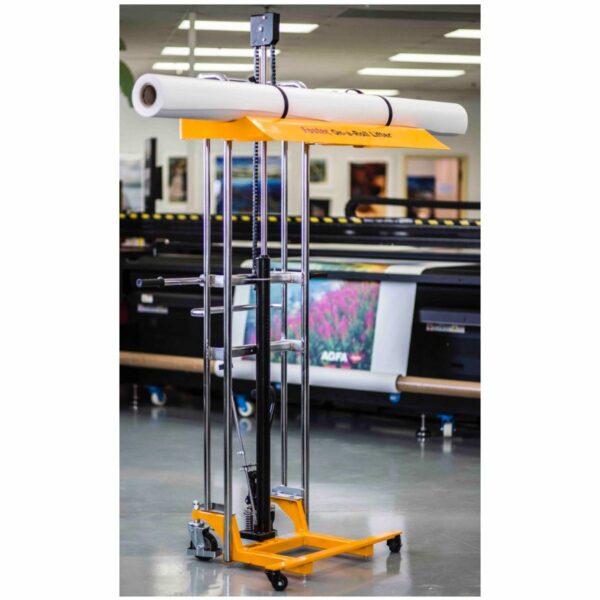

Foster On-A-Roll Lifter Hi-Rise is a genuine Foster product (Foster item #61570). No pulling. No heaving. No hefting. In minutes, with no strain to the back, you can lift heavy or wide rolls associated with today’s larger and faster print runs. The Hi-Rise On-A-Roll® Lifter’s sturdy steel construction allows the lifting of media up to 440 lbs.
Foster On-A-Roll Lifter Hi-Rise specifications
| Foster item # | 61570 |
|---|---|
| Product | On-A-Roll Lifter Hi-Rise |
| Roll Weight Capacity | 440 lbs (200 kg) |
| Lift Height | 71" (180 cm) |
| Max. Roll Width | 71" (180 cm) |
| Max. Roll Diameter | 18.5" (47 cm) |
| Overall Dimensions (W x D x H) | 47.25" x 31.5" x 80" (120 x 80 x 203 cm) |
| Media Lifter Weight | 198 lbs (90 kg) |
| Bottom Fork Clearance | 4" (10 cm) |
Source: Foster product page (go-foster.com).
Need help choosing media for your printer? Call a DTG print specialist at 800.681.0024 or email info@dtgweb.com.
Foster On-A-Roll Lifter Hi-Rise FAQ
What is the Foster item number?
61570, per Foster (go-foster.com).
How much weight can it lift and how high?
440 lbs (200 kg) roll capacity; lift height 71" (180 cm) (Foster).
What roll size does it handle?
Max. roll width 71" (180 cm), max. roll diameter 18.5" (47 cm) (Foster).
Where can I buy it?
From DTG in Tampa, Florida; call 800.681.0024 for freight and lead time.
