Description
Product Highlights
- Entry-level 4-color dye-sublimation printer for personalized products
- PrecisionCore MicroTFP printhead; up to 1200 x 600 dpi
- Refillable 140 mL T49M ink bottles with auto-stop
- 150-sheet auto-feed tray
- USB, Ethernet and wireless connectivity

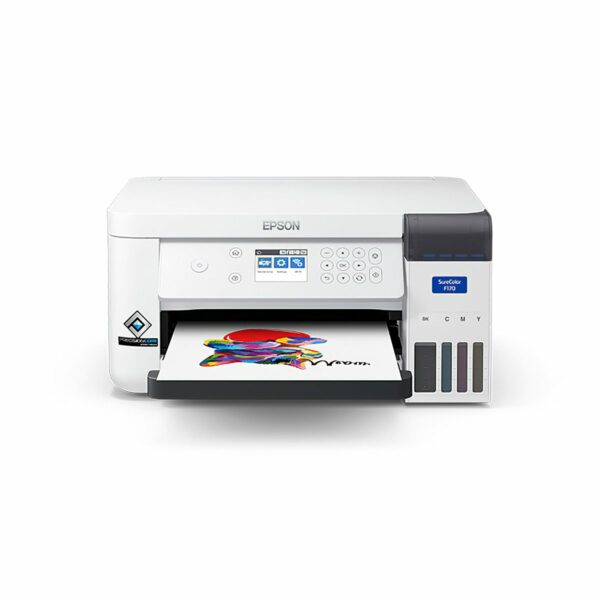

Epson SureColor F170 Dye-Sublimation Printer: overview
The Epson SureColor F170 is a compact dye-sublimation printer for makers, small shops and schools personalizing awards, mugs, mousepads and similar items. It uses a PrecisionCore MicroTFP printhead with 784 nozzles (400 black, 128 each for cyan, magenta and yellow), prints up to 1200 x 600 dpi and takes four-color (CMYK) T49M ink in high-capacity 140 mL bottles with auto-stop for mess-free filling.
A 150-sheet auto-feed tray handles sheet transfer paper, and Epson DS Multi-Use transfer paper is its recommended media for soft and rigid substrates. Connect over USB, Ethernet or wireless. Epson supplies streamlined print software optimized for dye-sublimation on Windows and Mac. The F170 weighs 10.2 lb, measures 14.8 x 19.8 x 7.4 inches while printing, and carries Epson’s standard one-year unit exchange with toll-free phone support, per Epson’s spec sheet. Its maximum paper width is 8.5 inches, so it is a letter-size printer; for wider formats, see the F370 and F570.
SureColor F170 key specifications
| Printhead | PrecisionCore MicroTFP; 784 nozzles (400 K; 128 each C, M, Y) |
|---|---|
| Resolution | Up to 1200 x 600 dpi |
| Ink | 4-color T49M bottles (140 mL): Black T49M120, Cyan T49M220, Magenta T49M320, Yellow T49M420 |
| Paper tray | 150-sheet auto-feed |
| Interfaces | USB, Ethernet, wireless |
| Weight / size | 10.2 lb; 14.8 x 19.8 x 7.4 in printing |
| Warranty (Epson) | Standard 1-year unit exchange with toll-free phone support |
What the SureColor F170 is used for
- Personalized mugs, mousepads and awards
- Small-batch custom gifts and craft products
- School and maker-space dye-sublimation projects
- Short-run transfers on polyester-coated items
F170 vs F370 vs F570
The F170 prints letter-size transfers. The Epson SureColor F370 prints up to 13 x 19 inches, and the SureColor F570 is a 24-inch printer with roll support, a built-in cutter and a touchscreen. See all models under dye-sublimation printers.
Ink, media, software and service for the SureColor F170
- Ink: T49M120 Black, T49M220 Cyan, T49M320 Magenta, T49M420 Yellow (140 mL); browse dye-sublimation ink.
- Media: Epson DS Transfer Multi-Use paper 8.5 x 11 in, 8.5 x 14 in and 11 x 14 in sheets; see dye-sublimation media.
- Maintenance: Epson F170 maintenance tank.
- Software: ask DTG about the RIP and layout software that fits your workflow; browse RIP software.
- Epson drivers, manuals and support for the SureColor F170
- Epson US product page for the SureColor F170
SureColor F170 FAQ
What is the Epson SureColor F170?
A compact 4-color dye-sublimation printer for personalized products such as mugs, mousepads and awards.
What ink does the F170 use?
Epson T49M dye-sublimation ink in 140 mL bottles: Black, Cyan, Magenta and Yellow.
What is the maximum print resolution?
Up to 1200 x 600 dpi.
What paper does it use?
Epson lists DS Multi-Use transfer paper for soft and rigid materials; the F170 has a 150-sheet auto-feed tray.
Where can I buy an F170 in Tampa, FL?
Call DTG (Digital Technology Group) in Tampa at 813.889.0660.
Questions about the SureColor F170? Call DTG in Tampa, FL at 813.889.0660 or contact us online.
Epson SureColor F170 Specification Sheet (PDF)
