Description

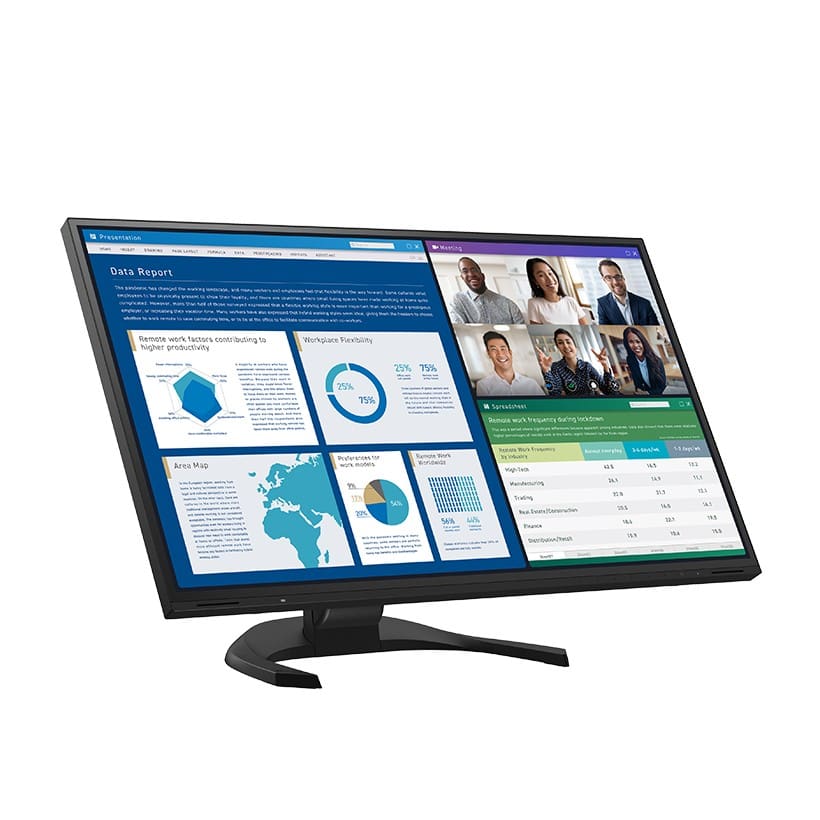

The FlexScan EV2740X is a 27-inch 4K UHD (3840 x 2160) monitor with a 163 ppi pixel density, a 94 W USB Type-C dock, a LAN port and a housing made of more than 80% recycled plastic. It is designed to keep laptops charged and connected while giving text and images exceptional sharpness.
Tackle More with 4K
Get Connected. Get Started.
Care for the Environment and You
Comfort and Confidence
Specifications
Tackle More with 4K
Work Effectively on a Wide 4K Screen
4K shows four times the information of Full HD and more than twice that of QHD, so more applications fit on the 27-inch screen at once with less scrolling and window switching.
Text, Icons and Images in Crisp Detail
At 163 ppi the pixels are far more densely packed than on a Full HD monitor, so even small text and icons stay crisp.
Get Connected. Get Started.
94 W USB Type-C
One USB Type-C cable carries video, audio, USB signals, a network signal and up to 94 W of power, enough to charge laptops or small desktop PCs without their own power supply.
Network and Peripherals
The built-in LAN port gives laptops without Ethernet a wired connection. EIZO's MAC Address Clone Utility can assign a connected PC's MAC address to the monitor on authenticated networks. The hub adds three USB Type-A ports and one USB Type-C port (15 W).
Inputs and Audio
In addition to USB Type-C there are DisplayPort and two HDMI inputs. Two 2 W speakers and headphone and line-out jacks are built in, and Picture-by-Picture can show two sources at once.
Care for the Environment and You
Recycled Materials and Packaging
The housing is more than 80% recycled plastic, and the monitor is packed in molded pulp with paper-wrapped cables. EIZO also offers corporate customers a collective packaging option.
Power Savings
Auto EcoView and EcoView Optimizer 2 cut power consumption by as much as 50% compared with maximum brightness (typical, without USB power delivery). The monitor is TCO Certified Generation 9 and EPEAT and ENERGY STAR registered; typical use is 16 W.
Comfort and Confidence
Eye Comfort and Stand

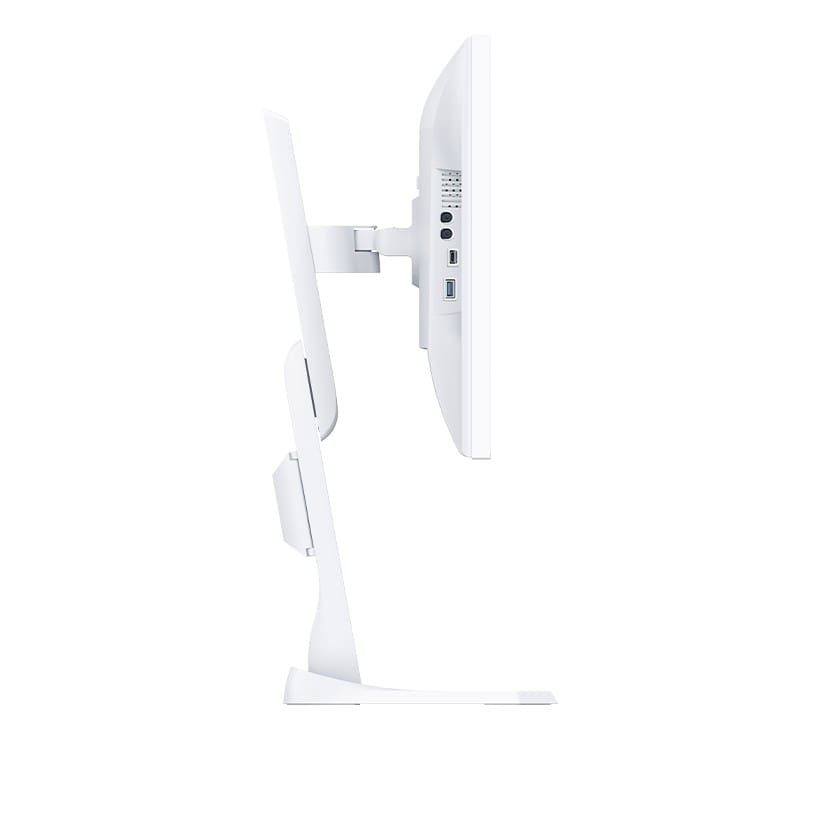

The IPS panel has 350 cd/m2 brightness, 2000:1 contrast and 178-degree viewing angles, with Paper Mode, flicker-free control and an anti-glare coating. The stand adjusts for height (195 mm), tilt and swivel.
Five-Year Warranty
A 5-year EIZO warranty (usage limited to 30,000 hours) and six months of zero bright sub-pixels apply.
Specifications
| Model | EV2740X-BK (EIZO model code EV2740X-BK, black cabinet with stand) |
| Panel | IPS, LED backlight, 27.0"; 68.5 cm |
| Native resolution | 3840 x 2160 (16:9 aspect ratio) |
| Viewable image size (H x V) | 596.7 x 335.7 mm |
| Pixel pitch / density | 0.155 x 0.155 mm / 163 ppi |
| Display colors | 16.77 million |
| Viewing angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 350 cd/m² |
| Contrast ratio (typical) | 2000:1 |
| Response time (typical) | 5 ms (gray-to-gray) |
| Color gamut | sRGB |
| Input terminals | USB Type-C, DisplayPort, HDMI x 2 |
| Audio output | Headphones (Stereo mini jack), Line out (Stereo mini jack) |
| USB upstream | USB 5Gbps: Type-B; USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 94 W max.) |
| USB downstream | USB 5Gbps: Type-A x 3; USB 5Gbps: Type-C (Type-C Current, 15 W max.) |
| Speakers | 2.0 W + 2.0 W stereo |
| Typical / max power | 16 W / 186 W |
| Power save / standby | 0.35 W |
| Dimensions with stand (W x H x D) | 611.6 x 370.8 – 565.4 x 242 – 250.1 mm |
| Dimensions without stand (W x H x D) | 611.6 x 358.8 x 60.5 mm |
| Net weight (monitor with stand, EIZO) | 8.2 kg (approx. 18.1 lb) |
| Net weight without stand (EIZO) | 5.5 kg (approx. 12.1 lb) |
| Height adjustment | 195 mm |
| Tilt | 35° Up, 5° Down |
| Swivel | 90° |
| Pivot | 90° (clockwise) |
| VESA mounting | 100 x 100 mm |
| Environmental certifications (EIZO; contact EIZO for latest) | TCO Certified Generation 9, EPEAT 2018 (US), EPA ENERGY STAR |
| Supplied accessories (may vary by country) | USB Type-C (1.5 m), AC power cord (2 m), setup guide |
| Warranty | 5 years (30,000 hours); zero bright sub-pixels for six months from date of purchase |
View the EV2740X on EIZO's website • See the Learn More and Support tabs for brochures, manuals and software. Questions about this monitor? Call Digital Technology Group at 813.889.0660.
EIZO FlexScan EV2740X FAQ
What is the EIZO FlexScan EV2740X?
The EIZO FlexScan EV2740X (DTG part number EV2740X-BK, EIZO model EV2740X-BK) is a 27.0-inch 3840 x 2160 (16:9) IPS business monitor with up to 94 W USB-C power delivery.
What inputs does the EIZO FlexScan EV2740X have?
EIZO lists these video inputs: USB Type-C, DisplayPort, HDMI x 2. The USB-C port supplies up to 94 W of power to a connected laptop. USB downstream: USB 5Gbps: Type-A x 3, USB 5Gbps: Type-C (Type-C Current, 15 W max.).
Does the EIZO FlexScan EV2740X have speakers or other built-ins?
EIZO lists 2.0 W + 2.0 W speakers and a built-in USB LAN adapter with an RJ-45 (1000BASE-T) port.
How bright is the EIZO FlexScan EV2740X?
EIZO lists 350 cd/m² brightness, 2000:1 contrast, 5 ms (gray-to-gray) response time and an sRGB color gamut (typical values).
Is the EIZO FlexScan EV2740X a color management monitor?
No. It is a FlexScan business monitor with an sRGB gamut. For photo, video and print work that needs a wide gamut and hardware calibration, see EIZO ColorEdge monitors.
How big and heavy is the EIZO FlexScan EV2740X?
EIZO lists 611.6 x 370.8 – 565.4 x 242 – 250.1 mm (W x H x D, with stand) and a net weight of 8.2 kg (about 18.1 lb) with the stand. Height adjustment range: 195 mm.
What warranty comes with the EIZO FlexScan EV2740X?
EIZO lists a 5-year warranty (usage time limited to 30,000 hours).
Where can I buy the EIZO FlexScan EV2740X?
Order it from DTG (Digital Technology Group) online or call a DTG specialist toll-free at 800.681.0024. Tech support on DTG's toll-free line is free.
Specifications from EIZO's EIZO FlexScan EV2740X product page (checked October 8, 2026). Specifications are subject to change by EIZO. Questions? Call DTG toll-free at 800.681.0024 or contact us online.
Eizo FlexScan EV2740X dimension drawing (PDF)
