Description

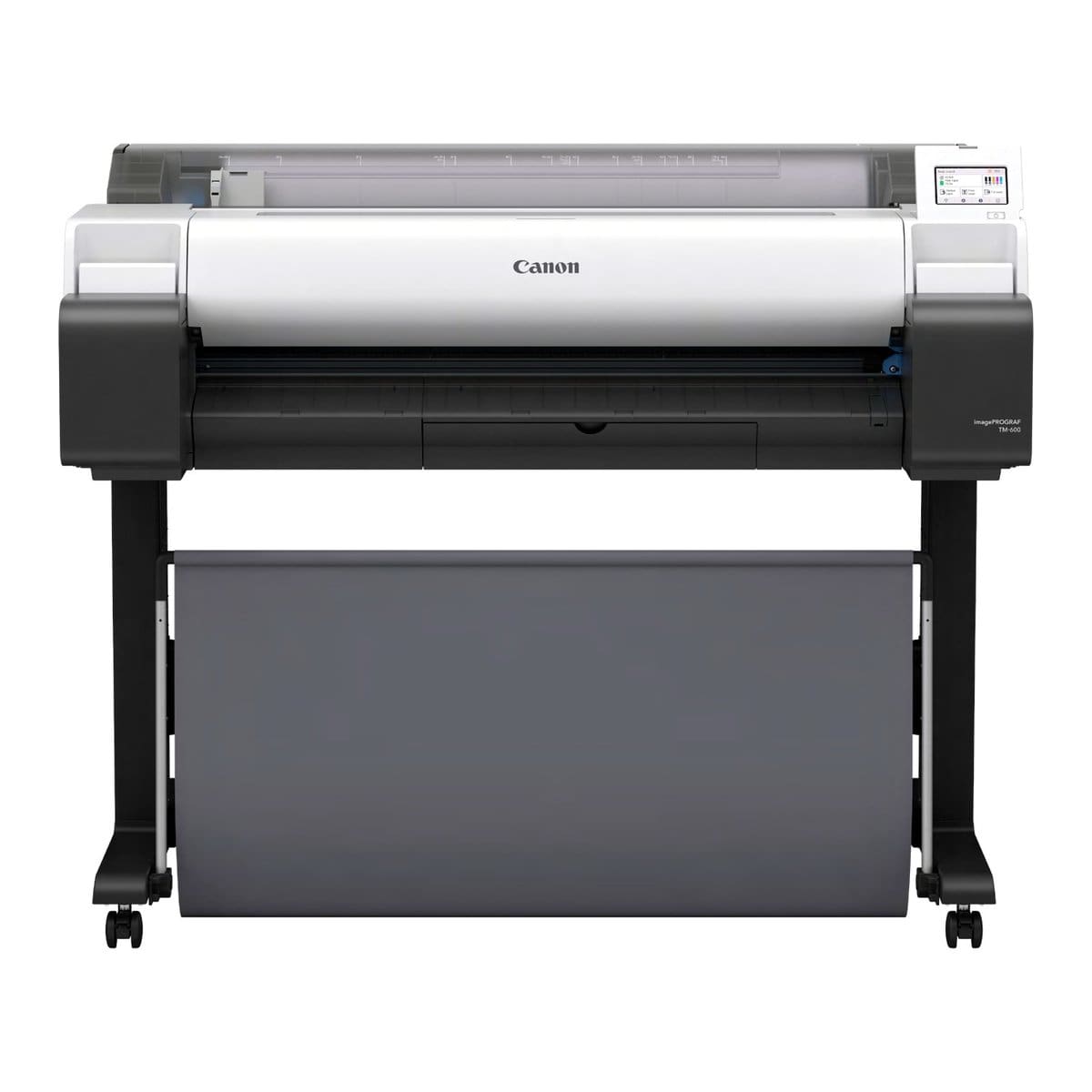

The Canon imagePROGRAF TM-600 prints up to 2.7 D-size (24″ x 36″) drawings per minute on plain paper, per Canon. It is a 36-inch, 5-color LUCIA TD pigment printer for CAD drawings, blueprints, GIS maps and posters. DTG in Tampa, FL sells, installs and supports it. Call DTG at 813.889.0660 or 800.681.0024.
How fast does the TM-600 print a D-size drawing?
Canon rates the TM-600 at up to 2.7 ANSI D prints per minute, measured after the first print in Fast Q5 mode on plain paper. Actual speed varies with copies, size, media type and orientation. Source: Canon U.S.A. press release, Sept. 15, 2026, and TM Series Brochure 2026.
TM-600 specifications
| Print width | 36″ |
| D-size speed (Canon) | Up to 2.7 D/min (Fast Q5, plain paper) |
| Ink | 5-color LUCIA TD pigment: MBK, BK, C, M, Y |
| Starter ink | 80 ml MBK and 55 ml BK/C/M/Y starter tanks |
| Replacement ink | 55 ml PFI-030/PFI-031/PFI-033 tanks |
| Printhead | PF-06, 15,360 nozzles (MBK 5,120; others 2,560 each), 2400 x 1200 dpi |
| Media | 8″ to 36″ roll and cut sheet, 0.07-0.8 mm thick |
| Max roll diameter | 5.9″ (150 mm) |
| Storage | 2 GB RAM |
| Output | stand with catch basket included |
| Printer dimensions / weight | 50.6″ x 34.2″ x 41.0″ with basket open; 132.3 lbs. |
| Configuration | Printer with stand and catch basket |
Why buy the TM-600 from DTG
DTG is an authorized Canon imagePROGRAF dealer in Tampa, FL. We help you pick the right technical printer for your drawing volume, set it up, and support it with ink, media and service. Call DTG at 813.889.0660 or 800.681.0024.
Specifications from Canon U.S.A.: TM-600 spec sheet. Specifications subject to change by Canon.
